Magnetic Particle: Super Avylin
Coercivity: 650 Oe
Remanence: 1650 Gauss
Squareness Ratio: 0.85
Operating Bias: 0.0dB
MOL 315Hz: +4.0dB
MOL 10kHz: -7.5dB
Sensitivity at 315Hz: 0.0dB
Sensitivity at 3.15kHz: 0.0dB
Sensitivity at 10kHz: 0.0dB
Sensitivity at 16kHz: 0.0dB
Bias Noise: -60.5dB

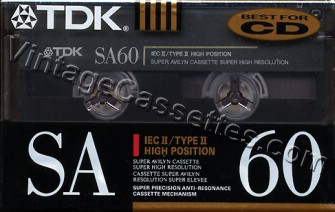

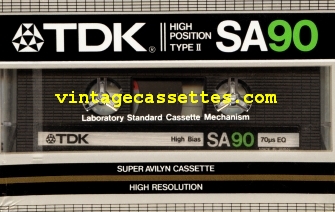

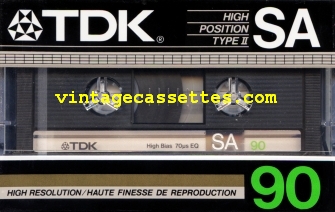

TDK SA was a "work-horse" of type II cassettes. It was the most successful TDK cassette ever. It offered oustanding performance for reasonable price - a deadly combination for the competitors. The formulation is based on Super Avilyn particle - the TDK answer to chrome based type II cassettes. It appreared first around 1974.
Japan |
US |
Europe |
|
74-75 |
![]() |
![]() |
|
75-78 |
![]() |
![]() |
|
79-81 |
![]() |
![]() |
|
82-84 |
![]() |
![]() |
|
84-85 |
![]() |
![]() |
|
85 |
![]() |
||
85-87 |
![]() |
![]() |
![]() |
87-89 |
![]() |
![]() |
![]() |
89 |
![]() |
||
90-91 |
![]() |
![]() |
![]() |
92-95 |
![]() |
![]() |
![]() |
93-94 |
![]() |
||
94-97 |
![]() |
![]() |
|
97-02 |
![]() |
![]() |
|
03-05 |
![]() |
